Home > Fires, Fireplaces & Stoves > Wood Burning Stoves

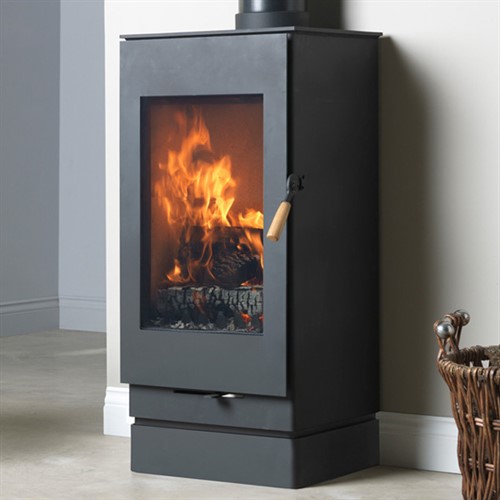

Burley Carlby 9307-C Catalytic Converter Wood Burning Stove

Manufacturer
Now £1,580.00
Or from £49.18 per month

Optional Extras
  • Base Plinth
  • Room Sealing Kit - Angled
  • Room Sealing Kit - Straight

Burley Stoves - Made in UKStanding tall and proud with a huge, portrait window allowing you to enjoy the dancing flames in all their glory. The Burley Carlby 9307-C utilises catalytic technology converting smoke into water vapor, carbon dioxide, and heat.

Burley’s research and design has ensured the catalytic converters are working in the perfect temperature band, therefore with normal use they are rated for over 10,000 hours use. Unlike many other catalytic stoves, with average use Burley’s cat’s will never need replacing.

The Carlby 9307-C is from Burley's 'Firecube' range of features an advanced heat exchanger. This heat exchanger scrubs the energy from the hot gasses before they go up the chimney and puts more warmth into your home.

The combination of efficient burning and heat recovery means that Burley are the ONLY company who guarantee that their wood burners will deliver more warmth and use less fuel than any comparable stove you may currently have. Burley are proud to not only manufacture all of their products in their factory in Oakham, but to also buy materials as locally and environmentally responsibly as they can.

Simple and modern in design, the Carlby is constructed from steel. The plate steel sections are 5mm and 8mm thick and are welded by robots with the welds applied in exactly the right place and in exactly the right thickness resulting in the steel sections being melted and fused together to make a virtually indestructible construction. Weighing in at a mighty 105kg, you can be assured that this cutting-edge stove is built to last giving years of dependable service.

Not only is the Burley Carlby 9307-C a DEFRA exempt stove and approved for burning wood in smokeless areas, it has passed the tests for the upcoming EcoDesign directive. Ecodesign Compliant stoves have been third party independently verified as meeting the maximum emission limits for particulate matter (PM), organic gaseous compounds (OGC), carbon monoxide (CO), nitrogen oxides (NOx), as well as the minimum limits for seasonal efficiency.

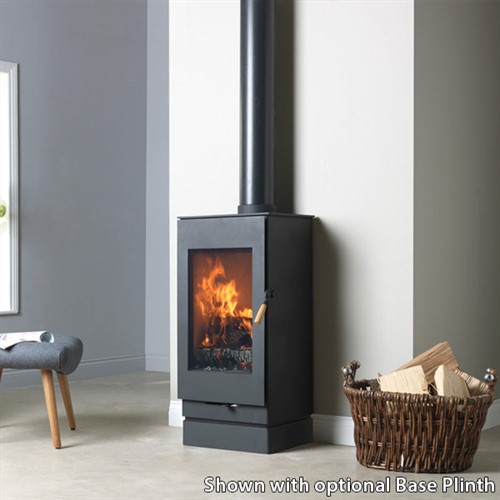

Finished in classic matt black high temperature paint with attractive wood door handle, the dedicated wood burning Burley Carlby 9307-C and is available with an extended base plinth. This is the perfect accompaniment for stand alone installations where height needs to be emphasised. This item is a separate component and fits to the standard height stove.

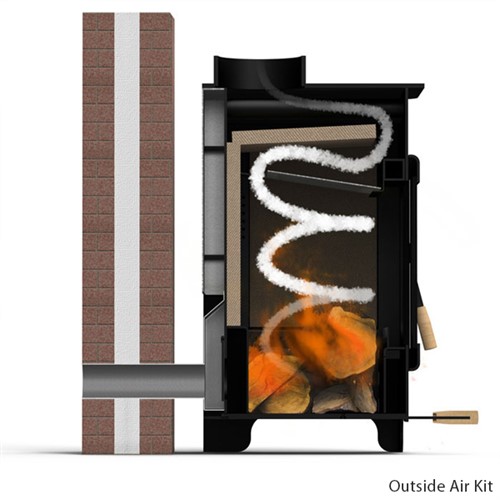

An optional Outside Air Kit can also be purchased as a Standard Room Seal Kit or Angled Room Seal Kit. The Standard Kit connects directly from the rear of the fire to the back wall. The Angled Kit exits at 900 from the rear of the fire. This can then be connected to standard ducts (available from builders’ merchants), to create a path to an outside wall. A maximum of five 900 angles may be used.

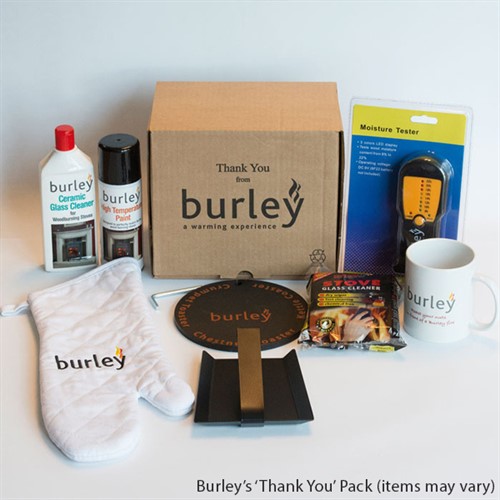

Burley Thank You Pack for StovesIncluded free with the Carlby 9307-C is Burley's 'Thank You' pack which typically contains:

  • Spanner to attach and adjust the tension of the air control lever
  • Coaster to protect the top of your stove
  • Moisture Meter to ensure your wood is dry
  • Glass Cleaner
  • Stove Paint in case you prefer black handles or ever need to touch up any paint work
  • Heat Resistant Glove
  • Scoop for removing ash
  • Allen Key should you wish to adjust the door handle
  • A Mug to enjoy a cup of tea whilst admiring the fantastic flame picture

The contents of the kits vary from model to model, so not all the items listed or shown above may be included with your stove.


Burley Firecube Stove Instructions

Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)


Burley Stoves Brochure

Download Brochure
(Burley Wood Burning Stove brochure 2021)



Brand
Burley
Model
Carlby 9307-C
Country of Manufacture
United Kingdom
Heater Type
Wood Burning Stove
Nominal Heat Output
7.0kW
Maximum Heat Output
18.2kW
Efficiency (Net)
84.7%
Maximum Log Length
400mm (16")
Dust (mg/m3)
18
Particulates (gr/h)
0.35
Carbon Monoxide
0.08
Nitrous Oxides
95
Hydrocarbons
67
DEFRA Approved
Yes
EcoDesign Compliant
Yes
Airwash System
Yes
CO concentration @ 13% Oxygen
0.11%
Weight
105kg
Air Vent requirement
38.5cm� sq. for houses built after 2010 / 11cm� sq. for houses built before 2010 (Air Vent not required if stove is room sealed)
Minimum flue draught mm H2O
0.5mm
Flue Gas temperature
261�C
Spigot temp
Above 200�C
Flue Size (top exit)
150mm (6")
Minimum chimney diameter
150mm (6")
Minimum distance to combustible materials. All other distance as per Building regulations Part J or HETAS recommendations
40cm behind (16") / 50cm at side (20") / 35cm to top (14")
Warranty
5 Years
*All dimensions are offered as a guide only and subject to change. These sizes are not to be used for any building preparation.

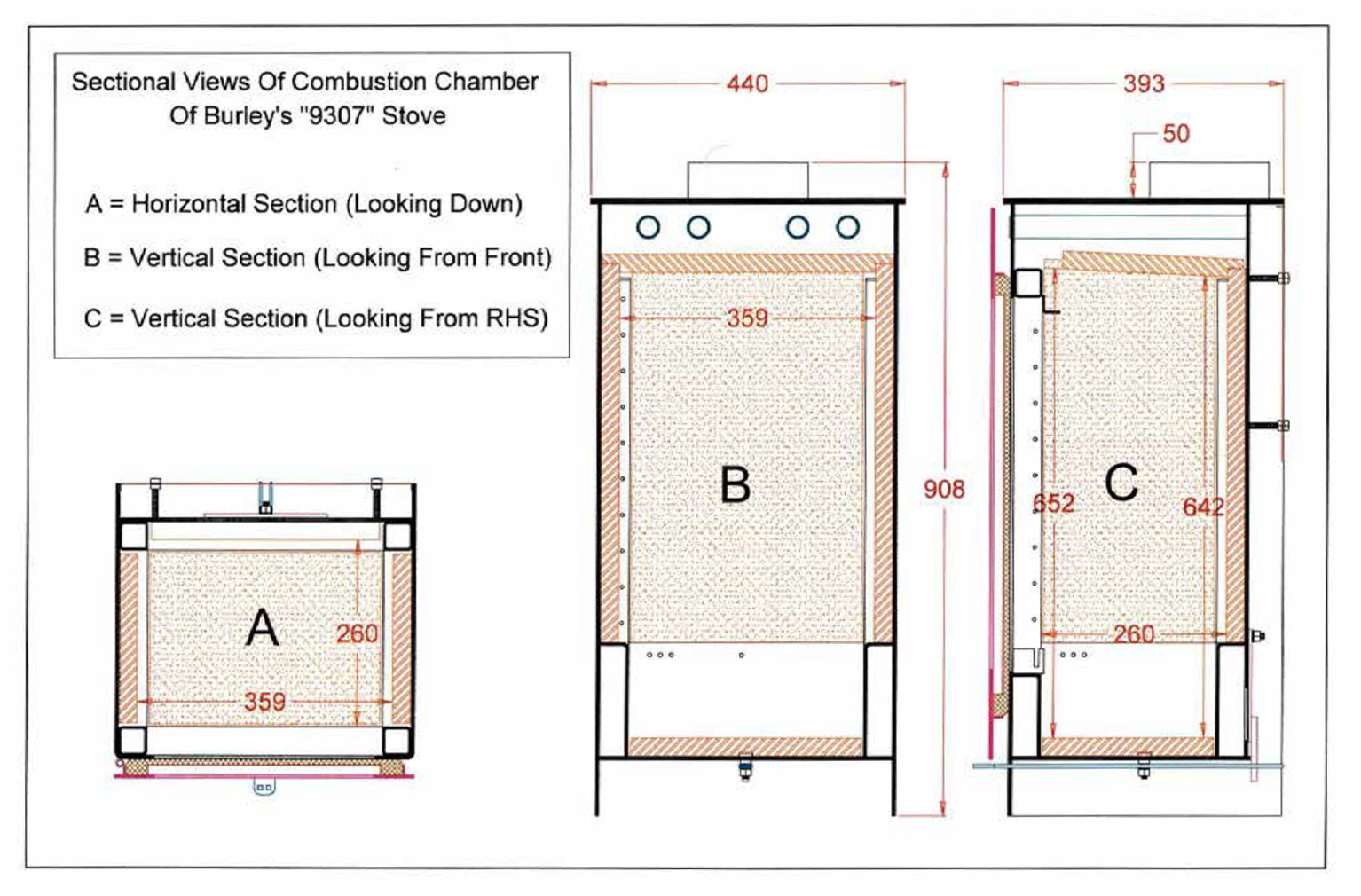

Burley Carlby Stove Sizes

Estimated Delivery for this product is 3 Days*

We offer Free Delivery within Mainland UK on all our products.

All Burley products will be delivered using a specialist courier company. You will be contacted prior to despatch to arrange a suitable delivery day. A signature will be required on all deliveries.

*Subject to stock at suppliers

Due to the continuing rise in costs for delivery to Highland areas, we have reluctantly concluded that having absorbed these costs for a long time this is regrettably no longer possible and we have had to introduce a fee for delivery to certain Scottish postcodes. Customers that live in the affected areas will be contacted when we process your order to be advised on specific extra charges and have the opportunity to confirm the order.
