Gazco Logic HE Designio2 Balanced Flue Gas Fire
.jpg)

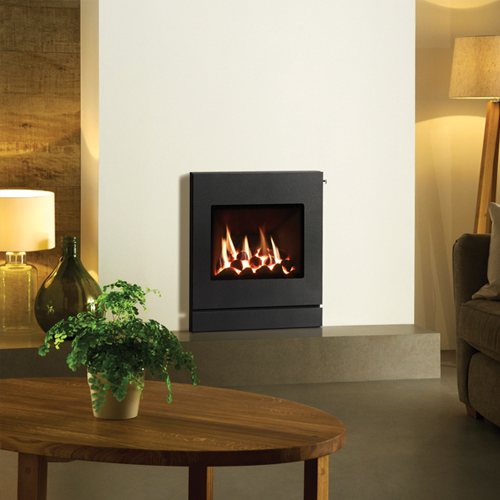

The clean, modern lines of the Designio2 fascia frame is equally suited to hearth mounted installations or modern, hole-in-the-wall applications
Combined here with the Logic HE Balanced Flue gas fire, you can enjoy the ambience and warmth of a real flame fire in properties without a chimney
Glass fronted gas fire supplied with require pipe and terminal for installation on a external wall
Rather than the fumes going up a flue or chimney, the are expelled from a horizontal pipe connected to the back of the fire to outside
Manual, Slide or Remote control options
Remote control option is fully automatic & thermostatic

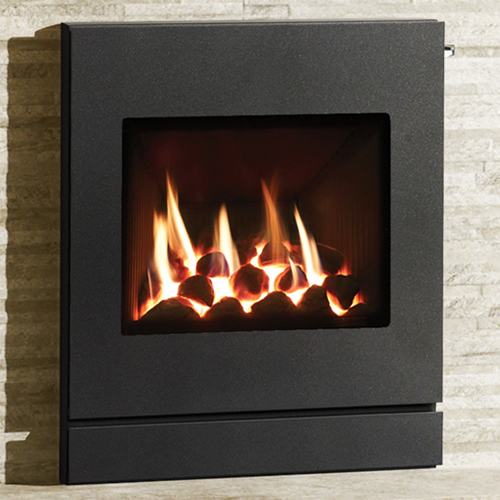

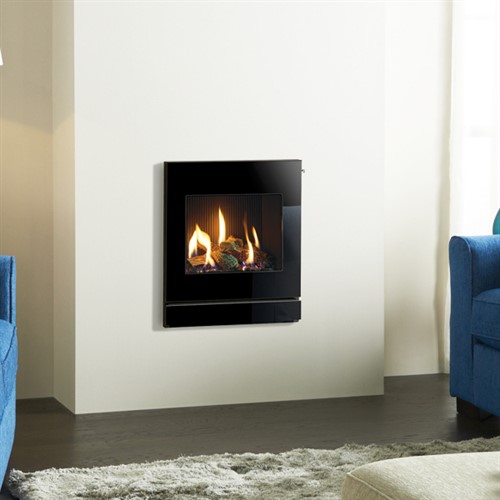

The Gazco Logic HE Designio2 balanced flue can be supplied in a choice of Graphite steel or in a shiny, Black Glass
Impressive 86% efficiency
Up to 3.4kW maximum heat output
Log effect now available for the slide control and remote control models
Log effect model has a deeper depth of 223mm
Glass fronted appliance suitable for installation on a flat, external wall
Direct Heat Output (Manual Control)
Coal - Natural Gas: 4.10kW / LPG: 4.00kW
Direct Heat Output (Slide Control)
Coal - Natural Gas: 4.10kW / LPG: 3.90kW | Log - Natural Gas: 3.90kW / LPG: 3.90kW
Direct Heat Output (Remote Control)
Coal - Natural Gas: 4.10kW / LPG: 3.90kW | Log - Natural Gas: 3.90kW / LPG: 3.90kW
Efficiency
Coal: 89% / Log: 84%
Flue Requirement
Class 1 & Class 2
Colour/Finish
Graphite / Black Glass
Fuel Effect
Coals or Logs with Slide or Remote control only
Control
Manual / Slide / Remote
Warranty
5 Years (extended warranty)
*All dimensions are offered as a guide only and subject to change. These sizes are not to be used for any building preparation.
Gazco Logic HE Designio2 Balanced Flue Gas Fire Dimensions
Overall Fascia Size: 519mm wide x 606mm high
Log fuel effect model has an increased engine depth from 160mm to 223mm
