The Hardwick 9405-C features innovative, catalytic convertor technology which aids efficiency plus produces a cleaner burn resulting in Burley giving this model the accolade of 'Ecoelite' with particulate levels of less than 1/3rd of a stove which is merely Ecodesign!
The catalytic converter that aids complete combustion, turning carbon monoxide into carbon dioxide, releasing more energy in the process, therefore the stove with catalytic converter will generally have lower CO and higher efficiency than the stove without.
Burley’s research and design has ensured the catalytic converters are working in the perfect temperature band, therefore with normal use they are rated for over 10,000 hours use. Unlike many other catalytic stoves, with average use Burley’s cat’s will never need replacing.

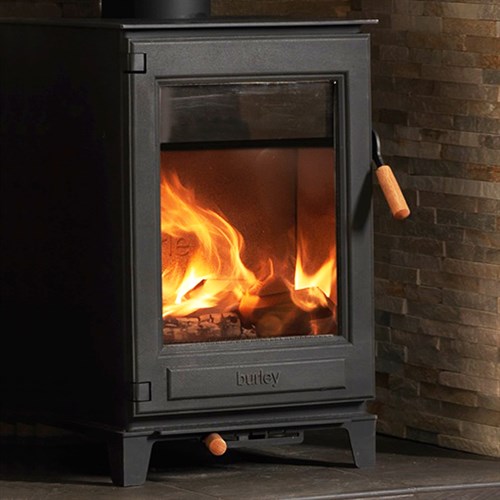

The Burley Hardwick 9405-C is finished in matt black with stylish wooden door handle and easy to use air control lever located at the base of the appliance. With a nominal heat output of 5kW, the Hardwick is a perfect choice to heat standard sized rooms. The Hardwick 9405-C is a DEFRA exempt stove and approved for burning wood in smokeless areas.
Simple and modern in design, the Hardwick 9405-C is constructed from steel with a cast iron door. The plate steel sections are 5mm and 8mm thick and are welded by robots with the welds applied in exactly the right place and in exactly the right thickness resulting in the steel sections being melted and fused together to make a virtually indestructible construction. Weighing in at 105kg, you can be assured that this cutting-edge stove is built to last giving years of dependable service.
For homes built before 2010, an Air Vent is not normally required when fitting the Hardwick. For homes built after 2010, an optional Outside Air Kit can also be purchased as a Standard Room Seal Kit or Angled Room Seal Kit. The Standard Kit connects directly from the rear of the fire to the back wall. The Angled Kit exits at 900 from the rear of the fire. This can then be connected to standard ducts (available from builders’ merchants), to create a path to an outside wall. A maximum of five 900 angles may be used.
Included free with the Hardwick 9405-C is Burley's 'Thank You' pack which typically contains:
- Spanner to attach and adjust the tension of the air control lever
- Coaster to protect the top of your stove
- Moisture Meter to ensure your wood is dry
- Stove Paint in case you prefer black handles or ever need to touch up any paint work
- Heat Resistant Glove
- Scoop for removing ash
- Allen Key should you wish to adjust the door handle
- A Mug to enjoy a cup of tea whilst admiring the fantastic flame picture
The contents of the kits vary from model to model, so not all the items listed or shown above may be included with your stove.
.png)
Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)
|
Download Brochure
(Burley Wood Burning Stove brochure 2021)
|
Country of Manufacture
United Kingdom
Heater Type
Wood Burning Stove
Nominal Heat Output
5.0kW
Maximum Heat Output
6.4kW
Maximum Log Length
310mm (12")
Particulates (gr/h)
0.125
CO concentration @ 13% Oxygen
0.18%
Air Vent requirement
550mm sq. min in houses built after 2010, otherwise not required
Minimum flue draught mm H2O
0.5mm
Flue Gas temperature
122�C
Flue Size (top exit)
125mm (5")
Minimum chimney diameter
150mm (6")
Minimum distance to combustible materials. All other distance as per Building regulations Part J or HETAS recommendations
20cm behind (8") / 35cm at side (14") / 35cm to top
*All dimensions are offered as a guide only and subject to change. These sizes are not to be used for any building preparation.
Overall width: 450mm (17¾")
Overall height: 680mm (26¾")
Depth: 420mm (16½")
