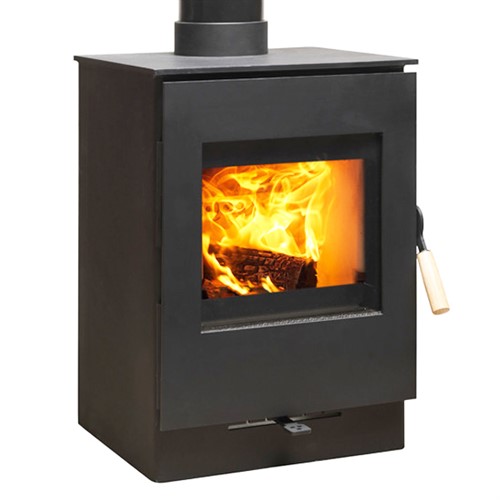

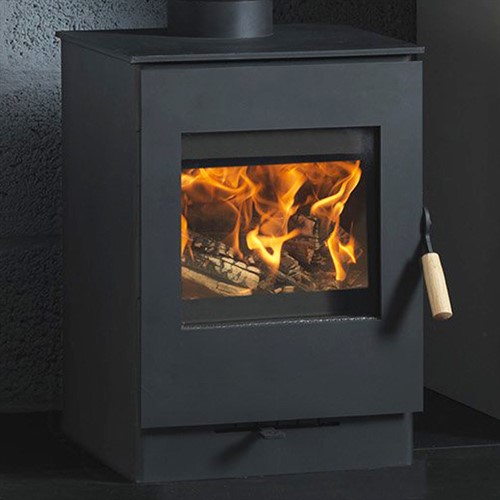

With a nominal heat output of 4kW, the Burley Launde 9304-C is a great stove to add highly efficient warmth and ambience to smaller rooms. Using state-of-the-art catalytic converter technology, this stylish wood burning stove achieves a superb energy efficiency rating of 84.9%.

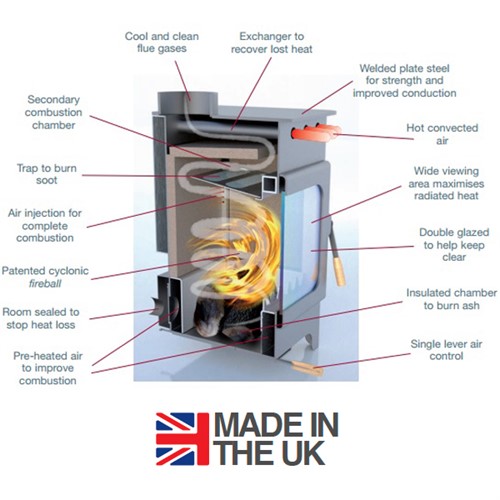

The catalytic converter in the Launde 9304-C 'Firecube' completes combustion by turning carbon monoxide into carbon dioxide, releasing more energy in the process and therefore the stove with catalytic converter will generally have lower CO and higher efficiency than the stove without.
Burley’s research and design has ensured the catalytic converters are working in the perfect temperature band, therefore with normal use they are rated for over 10,000 hours use. Unlike many other catalytic stoves,with average use Burley’s cat’s will never need replacing.

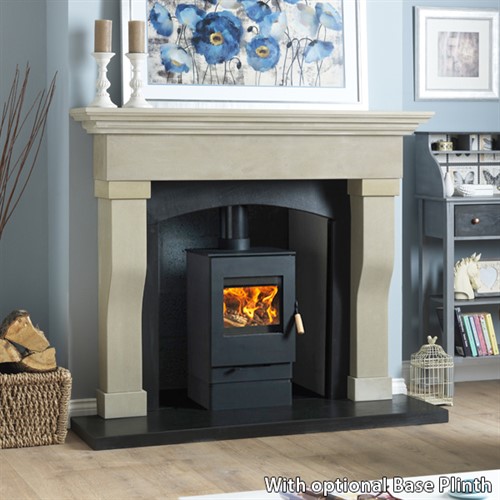

The modern style of the Launde 9304-C can be increased further with the addition of an optional Base Plinth which sits at the base of the appliance lifting the height by an extra 114mm (4½"). Made in Burley's headquarters in Oakham, East Midlands using locally sourced materials whilst being as environmentally responsibly as they can.
Simple and modern in design, the Launde 9304-C is constructed from steel. The plate steel sections are 5mm and 8mm thick and are welded by robots with the welds applied in exactly the right place and in exactly the right thickness resulting in the steel sections being melted and fused together to make a virtually indestructible construction. Weighing in at 57kg, you can be assured that this cutting-edge stove is built to last giving years of dependable service.
Not only is the Burley Launde 9304-C a DEFRA exempt stove and approved for burning wood in smokeless areas, it has passed the tests for the upcoming EcoDesign directive. Ecodesign Compliant stoves have been third party independently verified as meeting the maximum emission limits for particulate matter (PM), organic gaseous compounds (OGC), carbon monoxide (CO), nitrogen oxides (NOx), as well as the minimum limits for seasonal efficiency.

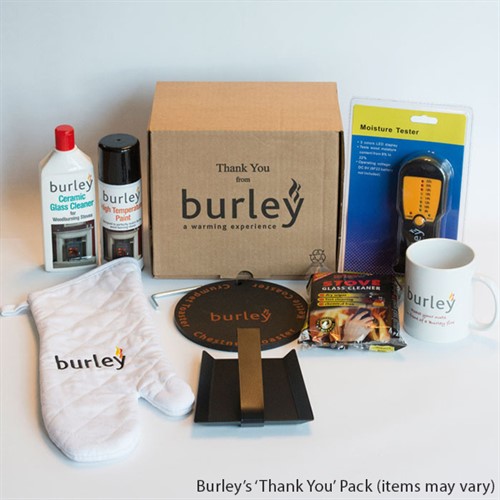

Included free with the Launde 9304-C is Burley's 'Thank You' pack which typically contains:
- Spanner to attach and adjust the tension of the air control lever
- Coaster to protect the top of your stove
- Moisture Meter to ensure your wood is dry
- Stove Paint in case you prefer black handles or ever need to touch up any paint work
- Heat Resistant Glove
- Scoop for removing ash
- Allen Key should you wish to adjust the door handle
- A Mug to enjoy a cup of tea whilst admiring the fantastic flame picture
The contents of the kits vary from model to model, so not all the items listed or shown above may be included with your stove.
.png)
Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)
|
Download Brochure
(Burley Wood Burning Stove brochure 2021)
|
Country of Manufacture
United Kingdom
Heater Type
Wood Burning Stove
Nominal Heat Output
4.0kW
Maximum Heat Output
5.3kW
Maximum Log Length
250mm (10")
Particulates (gr/h)
0.125
CO concentration @ 13% Oxygen
0.28%
Air Vent requirement
Not required
Minimum flue draught mm H2O
0.5mm
Flue Gas temperature
156�C
Flue Size (top exit)
127mm (5")
Minimum chimney diameter
127mm (5")

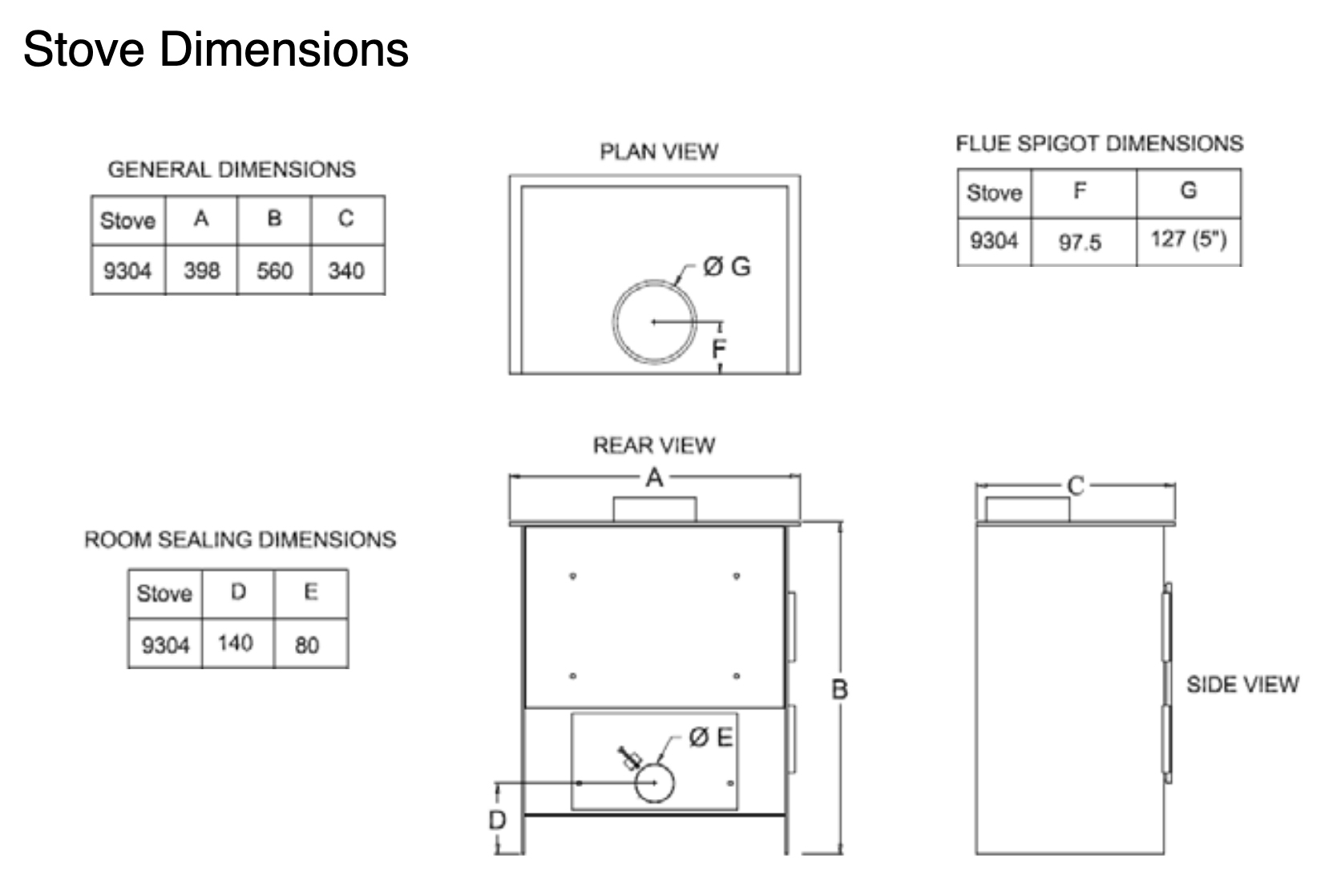

Minimum distance to combustible materials. All other distance as per Building regulations Part J or HETAS recommendations
20cm behind (8") / 40cm at side (16") / 40cm to top
*All dimensions are offered as a guide only and subject to change. These sizes are not to be used for any building preparation.
