This highly advanced stove from the highly renown British manufacturer Dunsley is packed with innovative features to aid performance and efficiency. The ultra clean burning Dunsley Avance 500 has passed the EcoDesign legislation tests set to come into force in 2022 which results in up to 90% fewer PM emissions compared to an open fire and 80% fewer than an old stove.
A new model designed from the ground up which focuses more on the contemporary style. Crafted from the perfect combination of steel for the body and cast iron for the door, the huge glass viewing window provides a superb view of the flames within.
Designed to burn wood in smoke controlled areas, the Avance 500 can also be used to burn smokeless fuels when fitted with the optional Multi-Fuel Kit. This smokeless fuel kit includes frame, grate bars, air slider and ash shovel.
The Avance 500 boasts a high level of controllability with a fast response for high and low burn. The most ideal setting will quickly be found moving the control lever slowly to find the most suitable position.
Using the correct rate of burning, efficiencies of up to 81.2% burning wood logs can be achieved. The stove flue exits to fit a 5" (125mm) diameter flue pipe. The 5kW nominal output of the Avance 500 can vary between 2.5 - 7.5kW depending on weight and type of wood being used.
The Dunsley Avance 500 is finished as standard in matt black or option to choose from a variety of coloured paint finishes.
Optional Log Store base also available.
Fuel
Wood (Smokeless fuels can be burnt when optional Multi-Fuel kit fitted)
Construction
Steel body with Cast Iron door
Energy Efficiency Rating
A+
Total Efficiency
81.2% Wood / 75.7% Solid Fuel
Mean CO Emission (at 13% O2)
0.10 Wood / 0.06 Solid Fuel
Flue Options
Top or Rear (Interchangeable)
Distance From Combustibles - Side
450mm
Distance From Combustibles - Rear
350mm
12mm hearth compatibility
Yes
Warranty
1 Year parts / 10 Year stove body
*All dimensions are offered as a guide only and subject to change. These sizes are not to be used for any building preparation.
Overall Width: 605mm

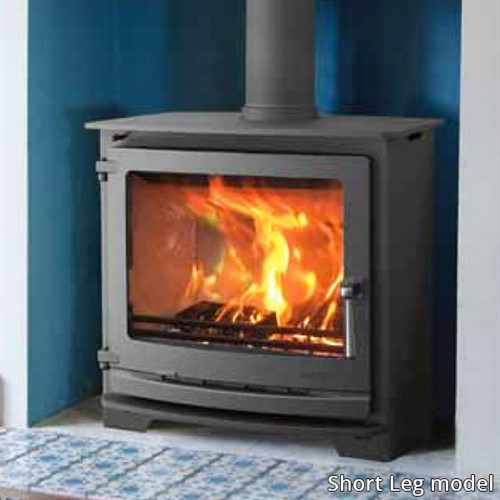

Overall Height: 630mm (Short Leg model: 560mm)
Overall Depth: 340mm
Floor to centre of rear flue outlet: 500mm (Short Leg model: 430mm)

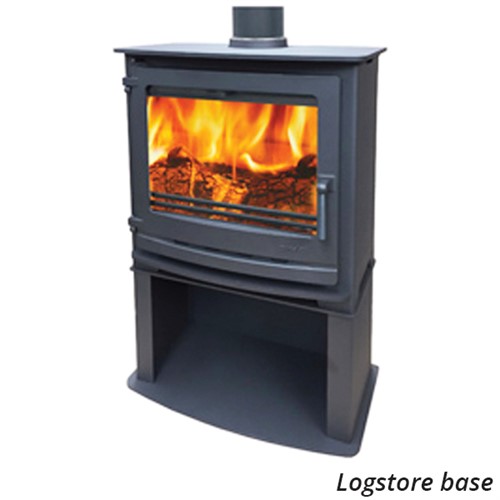

Optional Log Store Base sizes: 605mm wide x 325mm high
Dunsley Stoves are made to order and current lead time is approximately 6 weeks from order.
